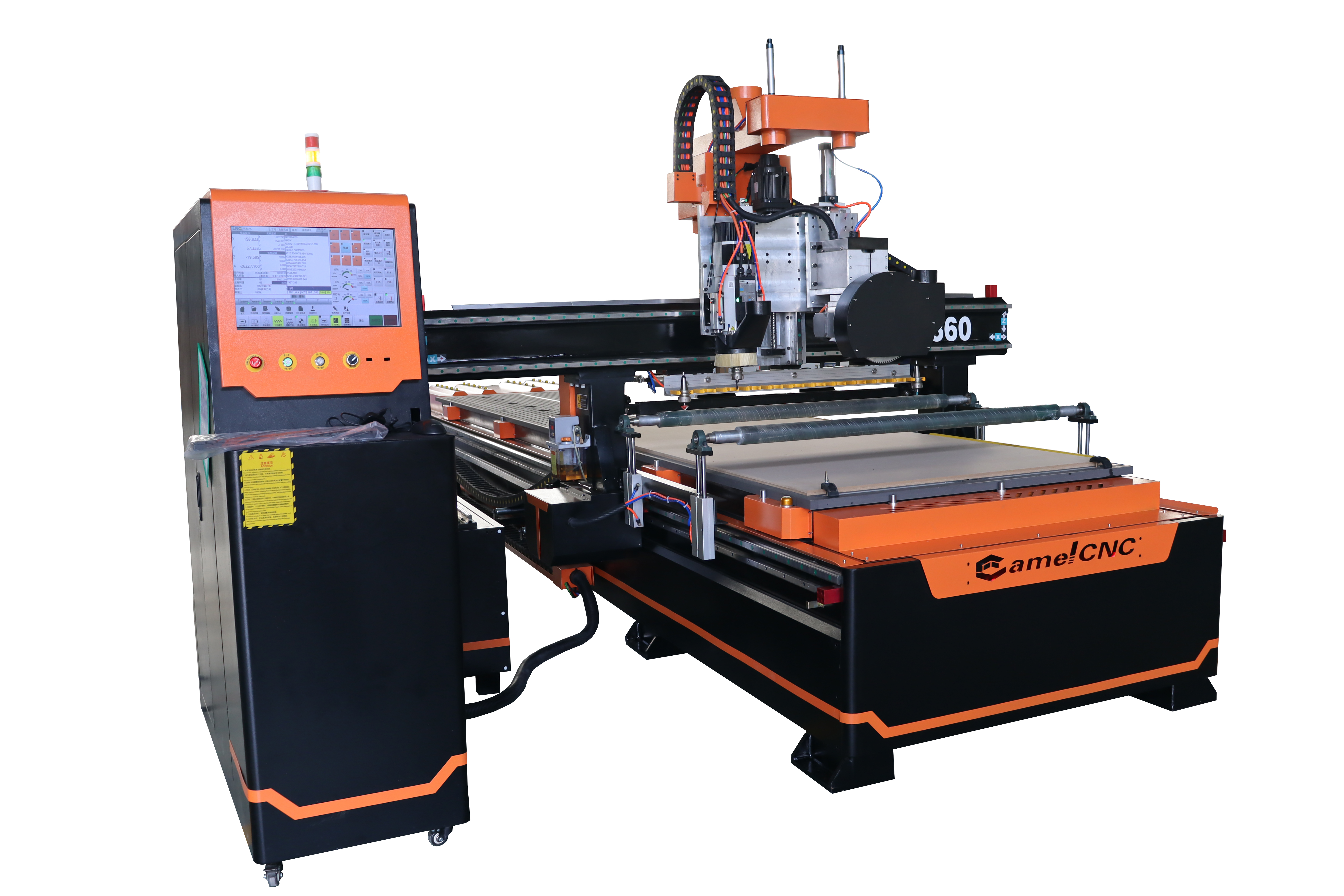

• Model: CA-1360 CNC Router
  • FOB Price : 10000-20000$
  • Min Order Quantity: 1 set
  • Supply Ability:
  • Payment Terms: T /T in advance
  • Product Detail

    Product Tags

    Main configuration:

    1. Working voltage 380V,three phase,50/60HZ
    2. Working area:1300mm*6000mm*300mm
    3. Industrial heavy duty double layer nesting frame 4. High Efficient 1.5MM Taiwan Helical Rack Gear transmission, X,Yaxis Rack and pinion, Z axis Taiwan TBI Ball screw 5. Taiwan 25MM square guid rail for x,y,z axis 6. Leadshine 1500W pure Servo motor and driver System 7. 11KW Fuling Inverter and 3 sets Japan Shimpo reducer 8. Auto tool position sensor 9. 9KW HQD air cooling spindle special for auto-tool changer 10. 12 pieces linear movable ISO30 auto-tool changer magazine 11. Vacuumm&T-slot table with 2 sets 7.5kw air vacuum pump
    12. 3 bags Auto Dust Collector with double bags with secondary dust removal device
    13. Taiwan LNC 2600 4 Axis ATC Control System with hand wheel 14. 4th independent rotary axis(diameter 200mm,length 2500mm) 15. Pneumatic precess wheels 16. Saw blade head
    17. Auto Lubrication for transmission system 18. 12 sets Auto-tool changer holders, Cutters and Collets, 1 sets Qing bottom knife 19. 20 sets woodworking tools 20. Whole set of maintenance tools,Allen wrench,Spanner,copper connection,clamps etc. 21. JDPaint software

    22.8pcs safety curtain


     1..Super quality 9KW Air cooling Auto-tool changer spindle.

     2.Taiwan Hiwin linear guide rail keep high working precision

     3.Famous servo motor and driver ensures machine to run with fast speed and low noise.

     4.With 12 pieces auto-tool changer and Auto tool sensor.

     5.Vacuum table and vacuum pump, and 3.0kw dust collector.

     6.Taiwan LNC ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.

        7.High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.




    1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.

    2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.

    3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.

    4.Other industry: image engraving, embossing, craft and gift industry


    Technical Data




    X,Y,Z Working Area


    Table Size


    X,Y,Z,Traveling Positioning



    X,Y,Z,Repositioning Positioning



    Lathe Bed

    Strong lathe bed


    Steel structure gantry design

    Guide Rail

    Taiwan Hiwin Square Rail with X,Y,Z axis

    XY Z Transmission

    Gear rack with X and Y axis

    Imported Ball Screw with Z axis

    Spindle Motor

    9kw HQD Air cooling spindle special for tool changer

    Max. Speed


    Max. Working Speed


    Spindle Speed


    Drive Mode

    Servo system

    Working Voltage

    AC220V/380V, 50/60Hz


    G Code, *uoo, *mmg, *plt


    11KW Fuling inverter

    Control System

    Taiwan LNC control system

    Typeset Software

    ARTCAM(can support any G-code software)


     Leadshine Servo Motor


    Servo Driver

    Tools cooling

    OIL sprayer pump

    Lathe Table

    Vacuum table with 8 sections +6 vacuum cups

    Vacuum Pump

    7.5KW VACUUM Pump

    Air compressor


    Tool Magazine

    12pcs ISO30 tool holder

    Dust Collector


    Electricity cabinet

    Independent Cabinet

    Tool sensor




    X,Y Working Delicacy



     Ucancam,  Artcam

    Running circumstance

    Temperature: 045, Relative humidity: 30%75%
