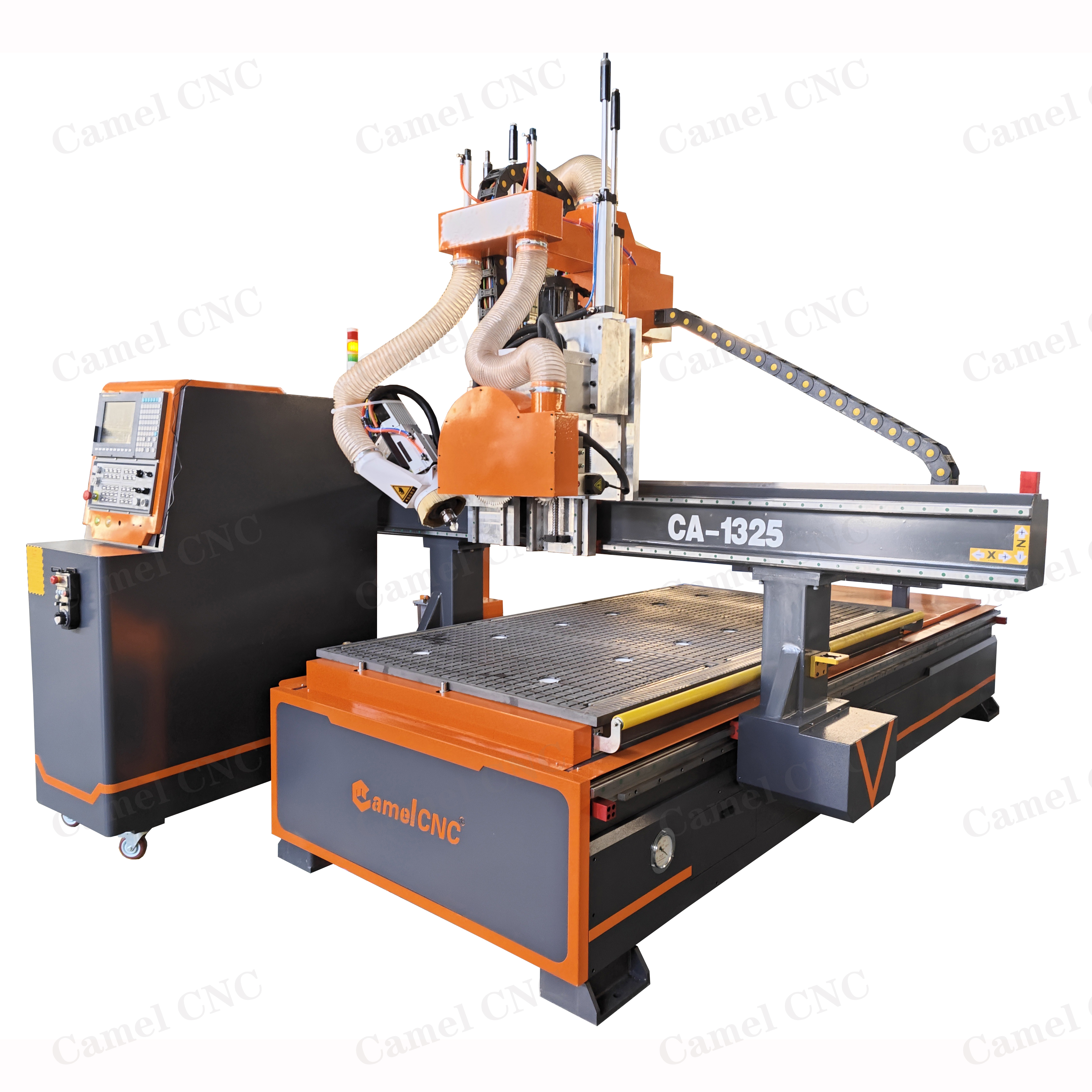

    CA-1325 4 Axis Spindle Rotate CNC Router


    Specifications

    1.Adopts 4 Axis numerical control system with handheld, the machine with high speed and high machining accuracy.

    2.Taiwan linear rails ensures accuracy and strength of the machine.

    3.Z-axis high size makes the machine suitable for processing large-scale sheets

    Applications

    1.Mold industry. Can engrave all kinds of large non-metallic molds, especially for automotive foam molds, ship wood molds, aviation wood molds, train wood molds and so on. And the precision moulding of molds such as casting wood molds, lost foam casting foams, and food molds.

    2.Furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.

    3.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.

    Technical Parameters

    NO.

    Description

    parameter

    1

    X Y Z working area

    1300*2500*400mm



    2

    Positioning accuracy

    ±0.03/300mm

    3

    Reposition positioning accuracy

    ±0.03/300mm

    4

    Frame

    Heavy steel

    5

    Drive system X,Y,Z axis

    Helical Rack gear

    6

    Max power consumption

    10.0KW

    7

    Max velocity

    25000mm/min

    8

    Max working speed

    15000mm/min

    9

    Spindle power

    5.5kw Water cooling spindle with Spindle rotate

    10

    Drive motor

    Leadshine 758 servo motor and driver

    12

    Working voltage

    AC220V,single phase

    13

    Command language

    G code

    14

    Interface

    USB

    15

    Operating system

    RichAuto A18

    18

    X-Y resolution

    0.03/300mm

    19

    Running Temperature:

    0 -45 centigrade
