• Model: CA-F1530
  • FOB Price : 19800
  • Min Order Quantity: 1
  • Supply Ability:
  • Payment Terms:
  • Product Detail

    Product Tags

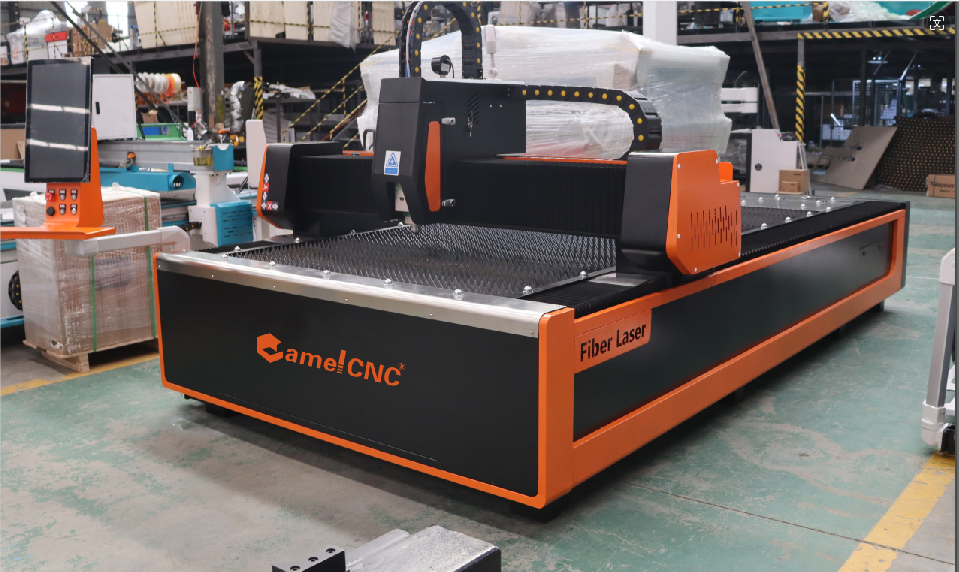

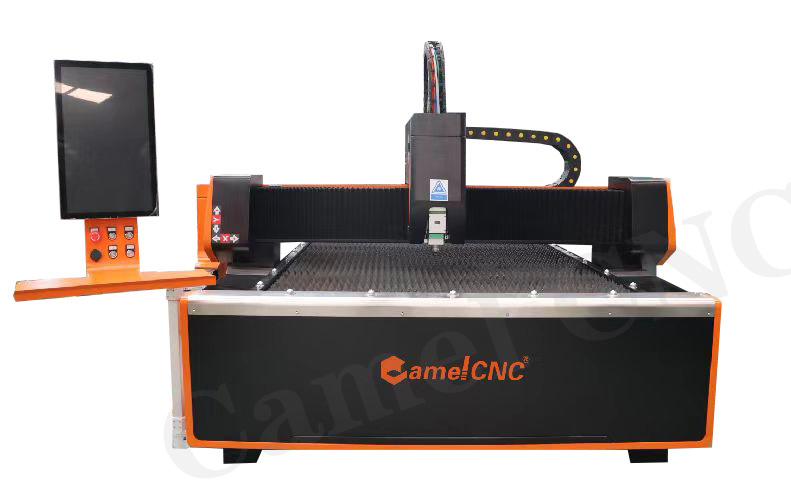

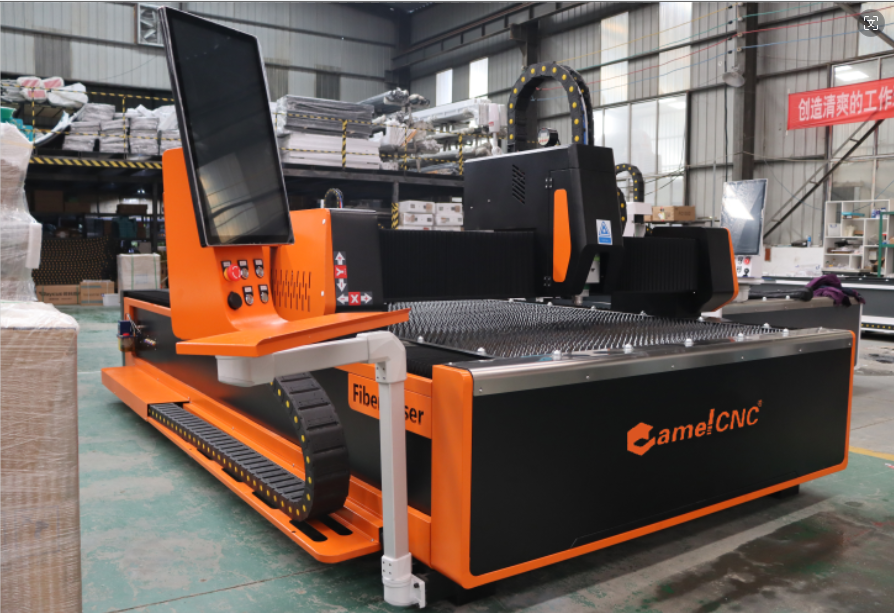

    CA-F1530 Fiber Laser Cutting Machine With 3000w Fiber Laser Generator



    Features:

    1.Integrated machine design, left and right collecting drawer design highly saving space.
    2. Stability and reliability for light path system and control system.
    3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
    4.Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.
    5. High performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
    6. Imported ball screw and square guide provides high speed and accuracy when working.
    7. Water chiller high capacity provides stability during long-term operation.
    8. A separate control box and handheld control makes it easier to control the machine.
    9. Without consumables. Easier to use, adjustment of the optical beam is not necessary.

    Parameters:

    Model
    CA-F1530
    Working area
    3000x1500mm
    Laser Power
    3000W
    Laser Wavelength
    1064nm
    Application Materials
    Metal
    Max. Cutting Thickness
    SS:10-12MM,MS:16-18MM
    Gross Power
    15KW
    Positioning Accuracy
    ±0.03mm/m
    Reposition Accuracy
    ±0.02mm
    X/Y-axis Maximum Simultaneous Positioning Speed
    140m/min
    U-axis max.moving speed
    30m/min
    Cooling Model
    Water cooling
    Rotary system
    Optional

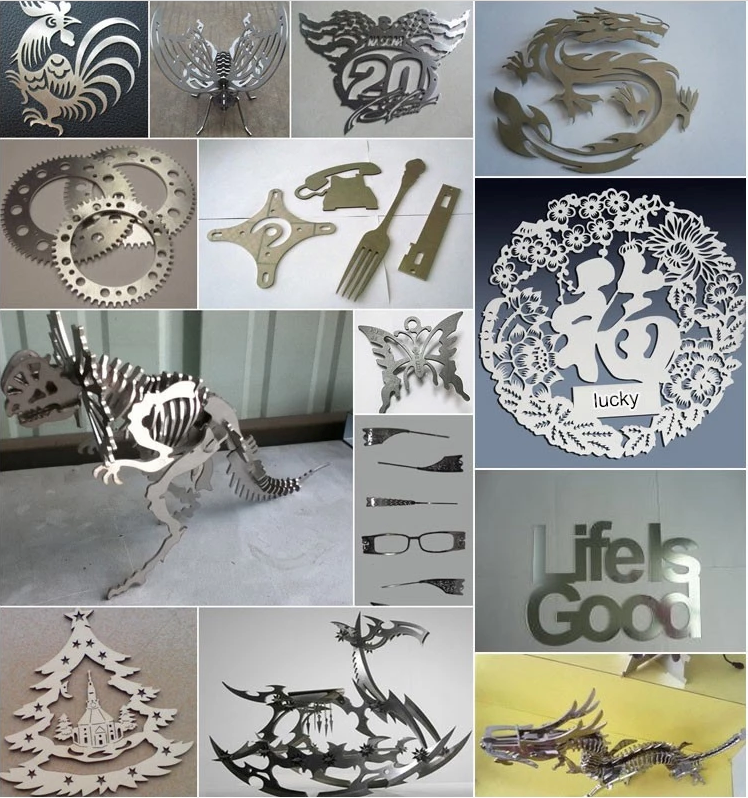

    Application:

    The applicable materials include: ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.

    laser machine.png
