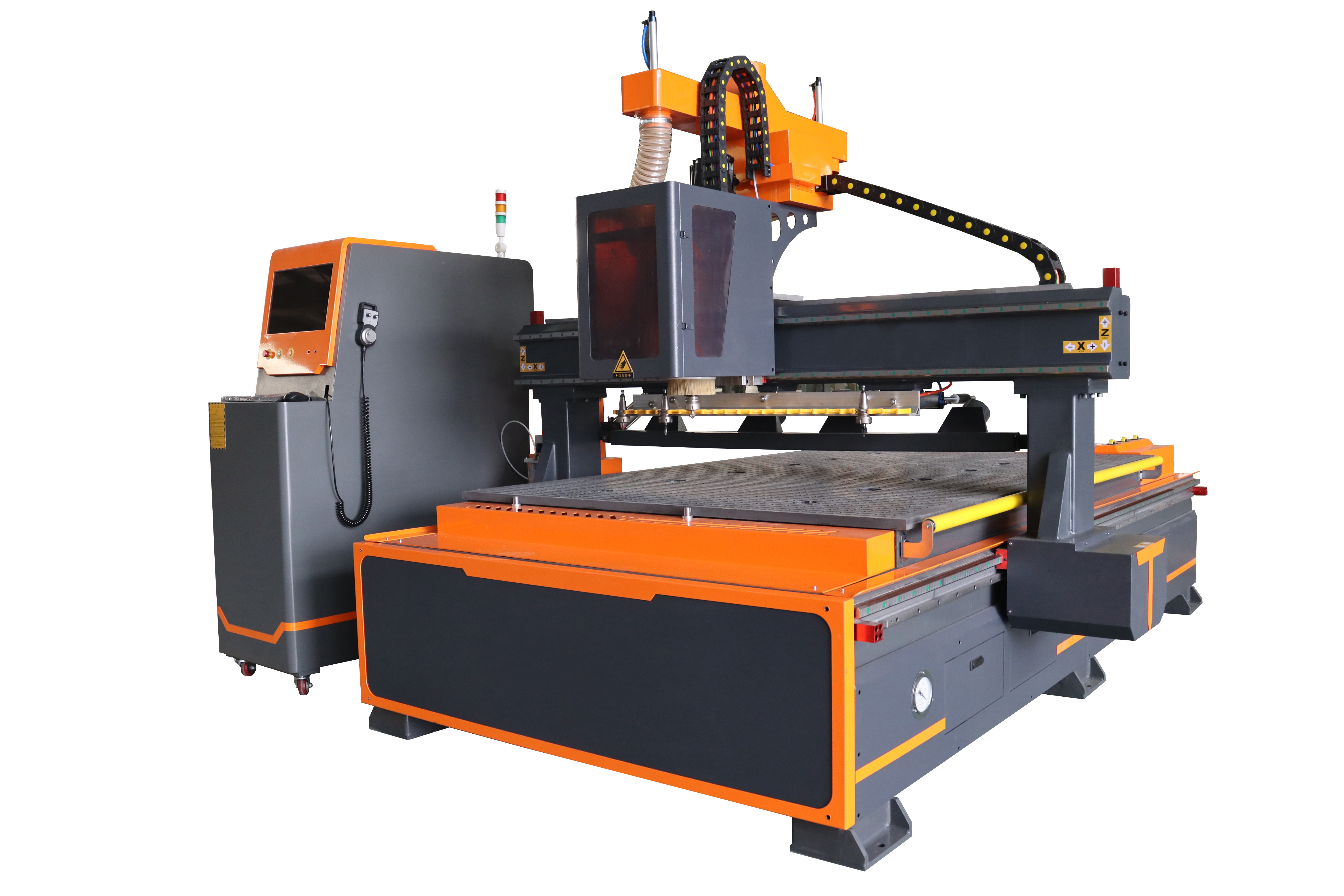

Super quality 9KW Air cooling spindle for atc.
Linear guide rail keep high working precision
Famous servo motor and driver ensures machine to run with fast speed and low noise.
Vacuum table and 2 sets 3kw vacuum pump, and 3.0kw dust collector.
Taiwan LNC controlling system, tool sensor to compensate the tolerance of tool length.
High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
1.This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
2.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
X,Y,Z Working Area
X,Y,Z,Traveling Positioning Accuracy
X,Y,Z,Repositioning Positioning Accuracy
Strong lathe bed
Steel structure gantry design
Taiwan 30MM HIWIN square guid rail for x,y,z axis
XY Z Transmission
Gear rack with X and Y axis Imported Ball Screw with Z axis
9KW HQD air cooling atc spindle special for atc
Max. Working Speed
G Code, *uoo, *mmg, *plt
11KW Fuling Inverter
Taiwan LNC control system
JDpaint(can support any G-code software)
Leadshine 1500w Servo Motor
OIL sprayer pump
Vacuum table with 6 sections +6 vacuum cups
12pcs ISO30 tool holder
Auto tool sensor
X,Y Working Delicacy
Temperature: 0℃～45℃, Relative humidity: 30%～75%
