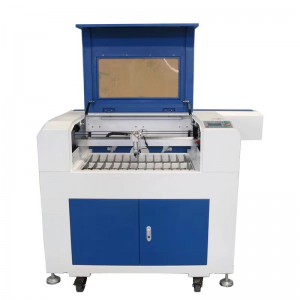

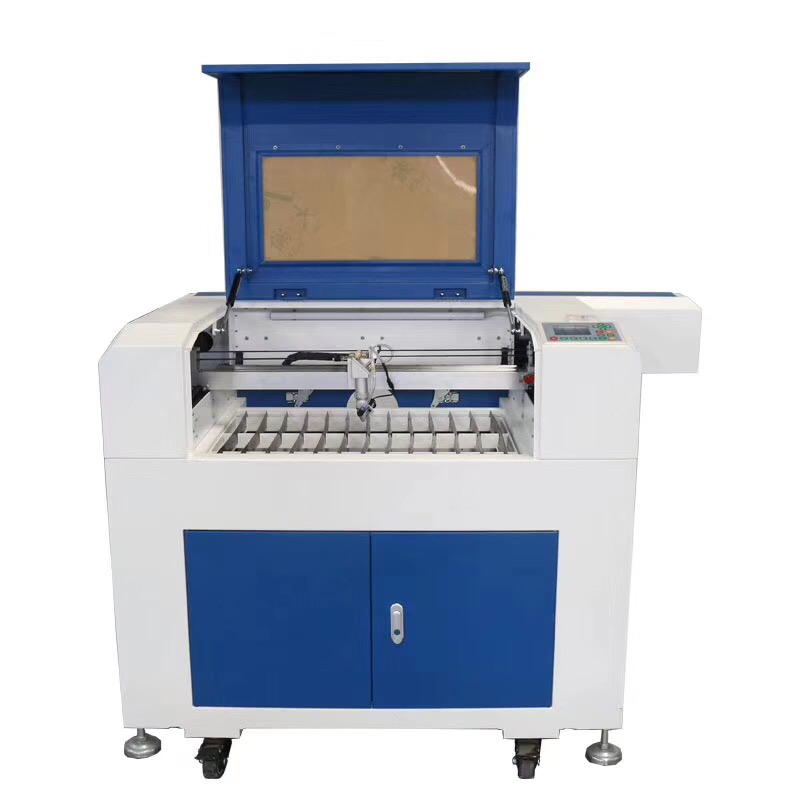

CA-6040 Laser Cutting Machine Ruida Controller
Configuration：
1.600x400mm working size
2.Ruida (RD) Control system
3.Stepper motor and drive
4.60w Laser power tube
5.Taiwan Hiwin liear guide
6.Blade working table (Honeycomb working table as optional)
Parameter:
| Type |
CA-6040 |
|||
| Engraving Area | 600*400mm | |||
| Laser Power | 60/80/100W | |||
| Laser Type |
CO2 Laser Tube |
|||
| Engraving speed |
0~60000mm/min |
|||
| Cutting speed |
0~36000mm/min |
|||
| Resetting positioning accuracy |
＜0.01mm |
|||
| Cutting depth |
Acryl 0-25mm(other depths depend on other materials) |
|||
| Minimum Shaping Character |
1.5×1.5mm |
|||
| Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
|||
| Gross power |
1200W |
|||
| Software supported |
ArtCut, CorelDraw, PhotoShop, AutoCAD |
|||
| Graphic format supported |
PLT、DXF、BMP、JPG、GIF、PGN、TIF |
|||
| Engraver for Curve surfaces (Yes/No) | YES (we can add an Rotary attachment on the Laser Engrave/Cutting Machine, then the machine can engrave on Cylinder) | |||
| Water Cooling: (Yes / No) |
Yes |
|||
| Maximum Height of Materials to Engrave (mm) |
400mm(Up and down by motor) |
|||
| Laser Tube (life hours) | 5000-10000hours | |||
| Assistant Equipment |
Water pump |
Exhaust Fan |
Flat bed worktable |
|
| Optional Spare Parts |
100W/130W/150W Tube |
Rotary System |
Cooling water system |
Red Dot Pointer |
| Recommended Spare Parts / Consumables |
Laser Tube and Lens |
|||
Application:
Applicable materials: acrylic,wood, MDF,bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging, paper industry
Samples:
