• Model: CA-RF30/CA-RF55
  • FOB Price : $4000-$6000
  • Min Order Quantity: 1 Set
  • Supply Ability: 300 Sets/Month
  • Payment Terms: L/C(Letter of Credit),T/T(Telegraphic Transfer),Western Union,Alibaba
  • Product Detail

    Product Tags

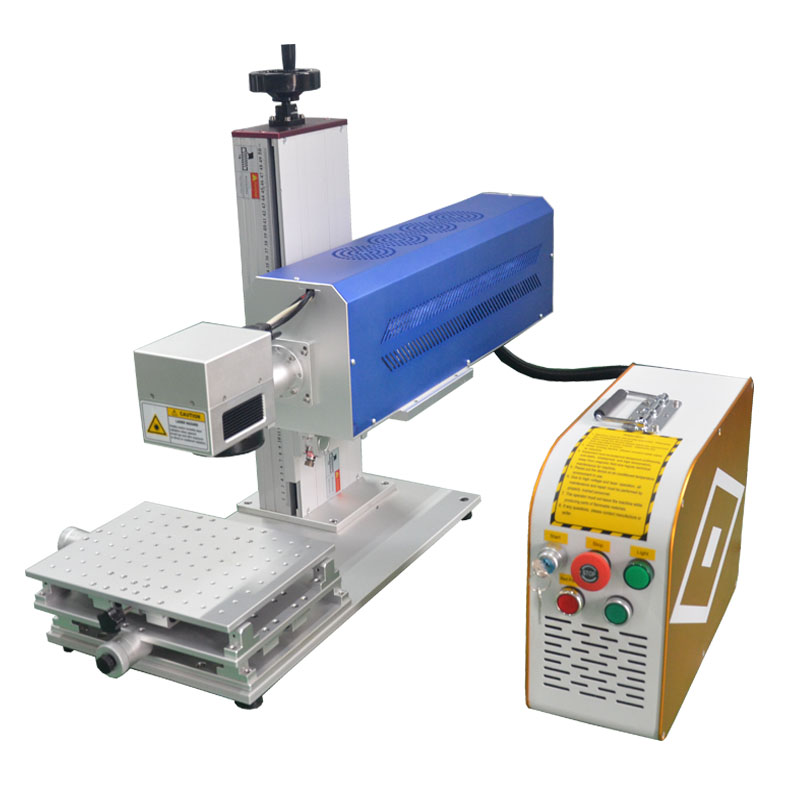

    CA-RF30 CO2 Laser Marking machine

    Desktop RF30W CO2 Laser Marking Machine

    Product Detail:

    1:High precision and fast speed. Marking depth is controllable optionally.

    2:Wide application. It can mark mostly non-metals.

    3:No consumption and pollution.

    4:The marking lines are clear, it can withstands heavy wearing.

    5:Chinese and English software are optional. The software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by CORELDRAW, AUTOCAD, PHOTOSHOP and other software. Meanwhile, SHX and TTF can be imported into the software directly.

    Parameters

    Technical specification

    Type specification CA-RF30

    Wave length of laser

    10.6μm
    Laser repetition frequency ≤25KHZ
    Laser power RF 30W
    Marking scope 110*110 /200*200mm/300*300mm(according to different power)
    Marking depth ≤0.3mm(adjustable according to materials)
    Laser Head Scanning head
    Linear Speed ≤7000mm/s
    Min.Line Width 0.03mm
    Min.Letter 0.2mm
    Repeated accuracy ±0.01mm
    Cooling ways Air cooling
    Power supply 220V/ 50Hz/2kVA
    Process Material Various of nonmetal materials
    Support format PLT, BMP, DXF, JPG, TIF, AI etc
    Package Standard Crate for export
    Applications leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, other non-metals etc.

    QQ图片20180118145838
