    CA-1530 Metal sheet&pipe fiber laser cutting machine


    Machine Specification:

    1.1500x3000mm working area

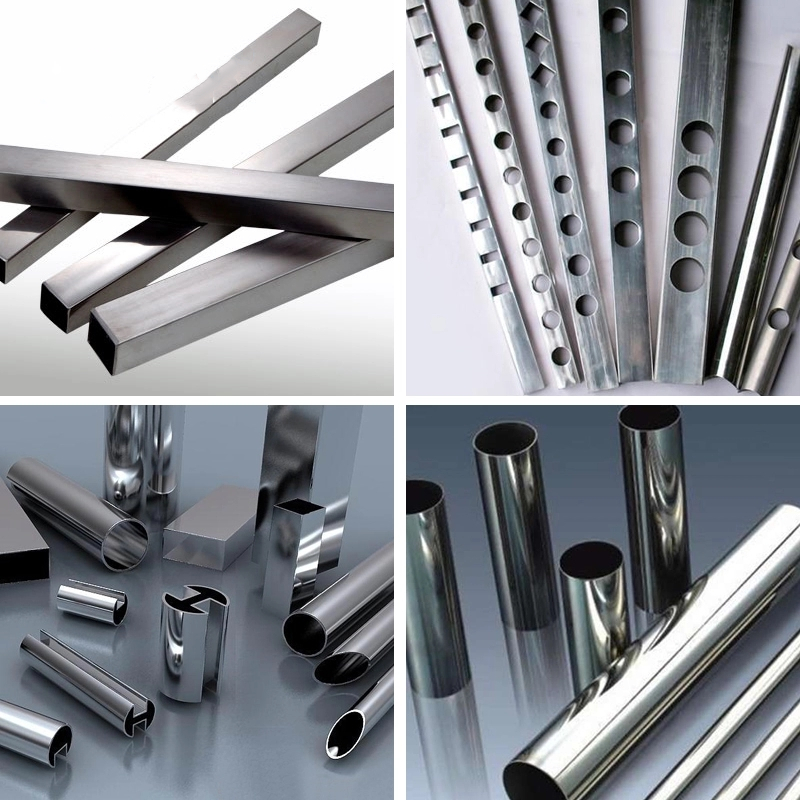

    2.Rotary axis for metal square tube,circel tube cutting.(Max diameter 300mm)

    3.Original Cypcut control system

    4.Japan Yaskawa servo motor and drive

    5.1000w 2000w 3000w  MAX/RAYCUS laser generator


    1.Integrated machine design, left and right collecting drawer design highly saving space.

    2. Stability and reliability for light path system and control system.

    3. Fiber laser has high and stable function and lifespan which is over 100000 hours.

    4.Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.

    5. High performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.

    6. Imported ball screw and square guide provides high speed and accuracy when working.

    7. Water chiller high capacity provides stability during long-term operation.

    8.A separate control box and handheld control makes it easier to control the machine

    10. Without consumables. Easier to use, adjustment of the optical beam is not necessary

    11.4th independent rotary axis for metal tube,square pipe,circle pipe cutting.


    Model CA-1530
    Working area 3000x1500mm
    Laser Power 1000W/2000W/3000W
    Laser Wavelength 1064nm
    Application Materials Metal
    Max. Cutting Thickness MS:6-8MM
    Gross Power 9KW
    Positioning Accuracy ±0.03mm/m
    Reposition Accuracy ±0.02mm
    X/Y-axis Maximum Simultaneous Positioning Speed 140m/min
    U-axis max.moving speed 30m/min
    Cooling Model Water cooling
