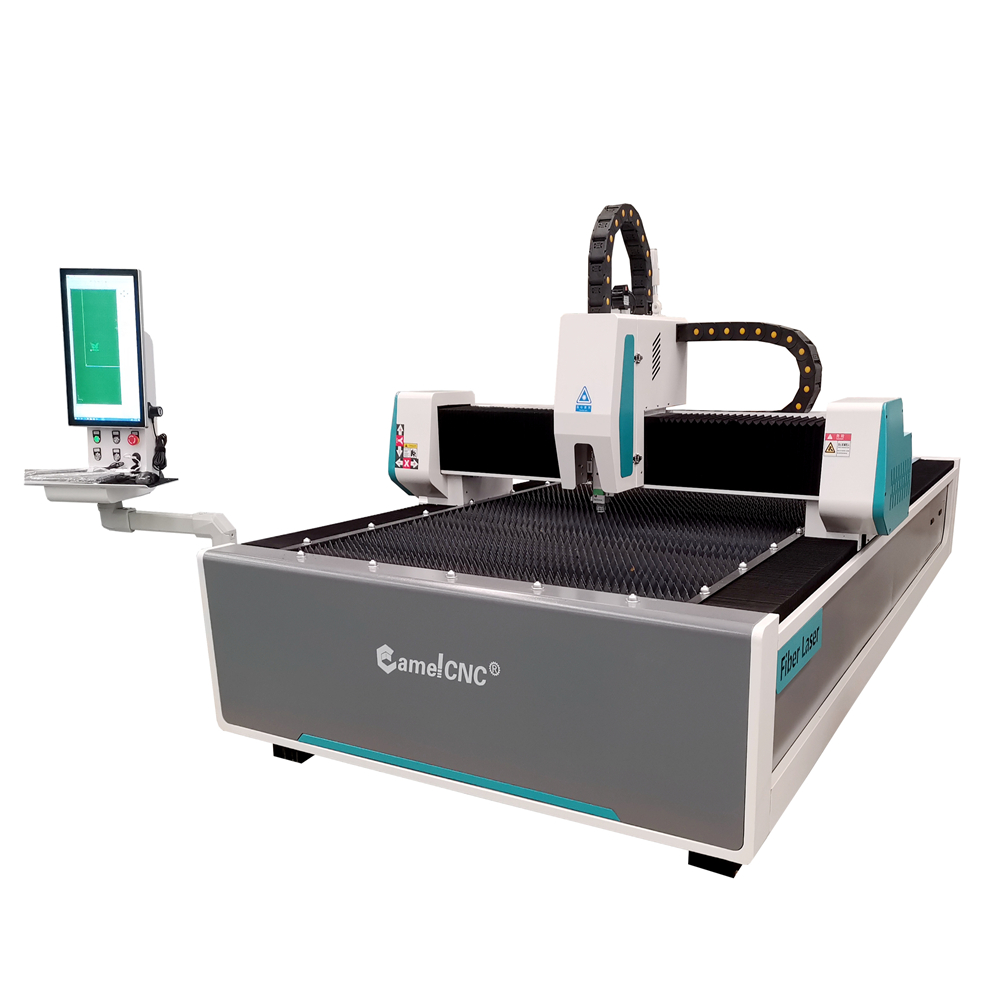

CA-1530 Fiber Laser Cutting Machine
Features:
1. Integrated machine design, left and right collecting drawer design highly saving space.
2. Stability and reliability for light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
6. Imported ball screw and square guide provides high speed and accuracy when working.
7. Water chiller high capacity provides stability during long-term operation.
8. A separate control box and handheld control makes it easier to control the machine
9. Without consumables. Easier to use, adjustment of the optical beam is not necessary
Parameters:
| Working area | 3000x1500mm(Mode:CA-1530) |
| Laser Power | 1000W(500W/1.5KW/2KW optional) |
| Laser Wavelength | 1064nm |
| Application Materials | Metal |
| Max. Cutting Thickness | SS:0.3-6mm(N2),Carbon steel:1-12mm(O2) |
| Gross Power | 9KW |
| Positioning Accuracy | ±0.03mm/m |
| Reposition Accuracy | ±0.02mm |
| X/Y-axis Maximum Simultaneous Positioning Speed | 140m/min |
| U-axis max.moving speed | 30m/min |
| Cooling Model | Water cooling |
| Rotary system | Optional |
Advantages:
1. High quality in cutting edge precision in cutting. Excellent in stability.
2. Cutting large format and suitable for cutting more material.
3. Drawer and air valve for work convenience.
4. High performance-price ratio
5. Low cost for using
6. Low fees for the future maintenance
Applicable materials and Industry:
The applicable materials include: ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
Suitable for aerospace technology ,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
