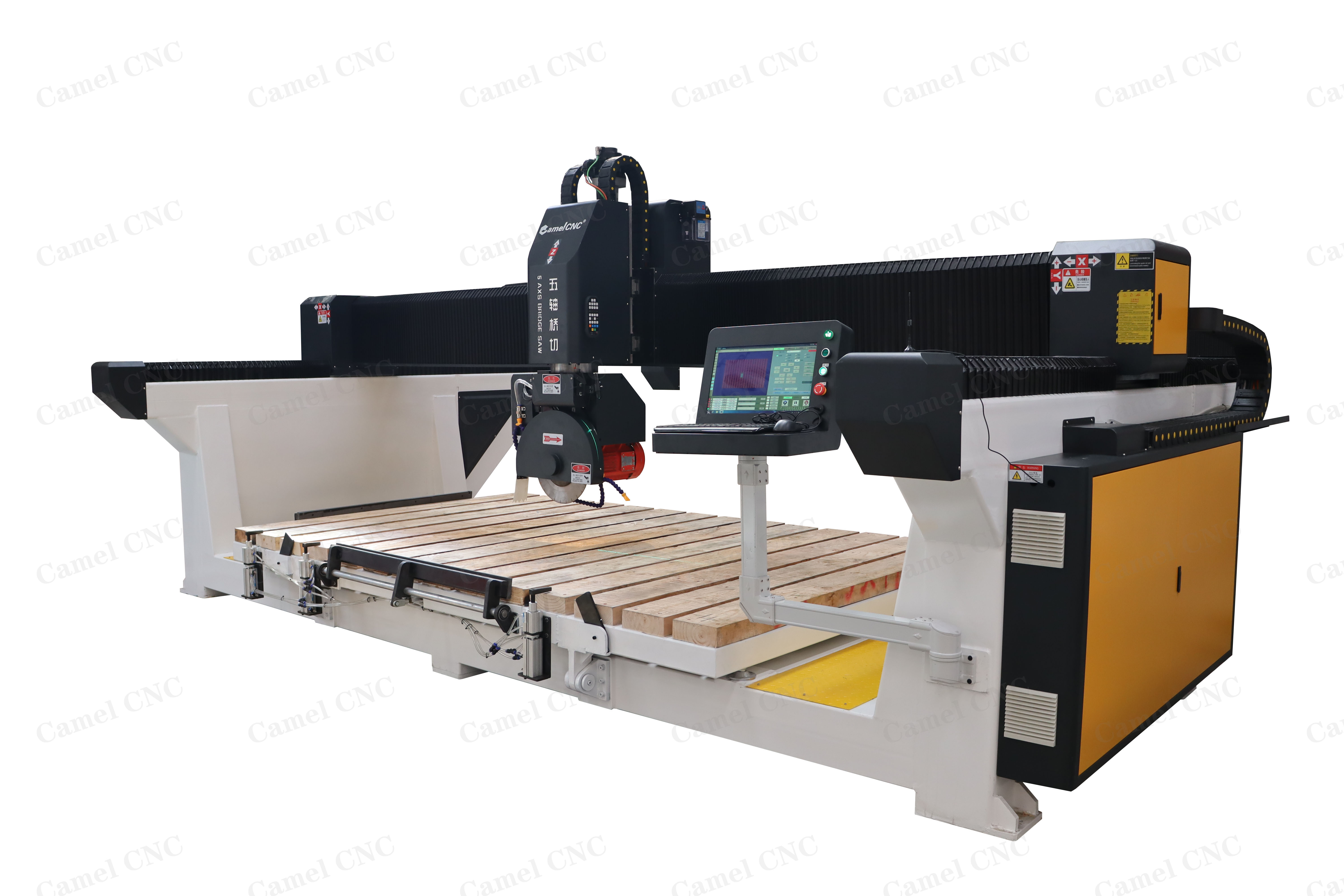

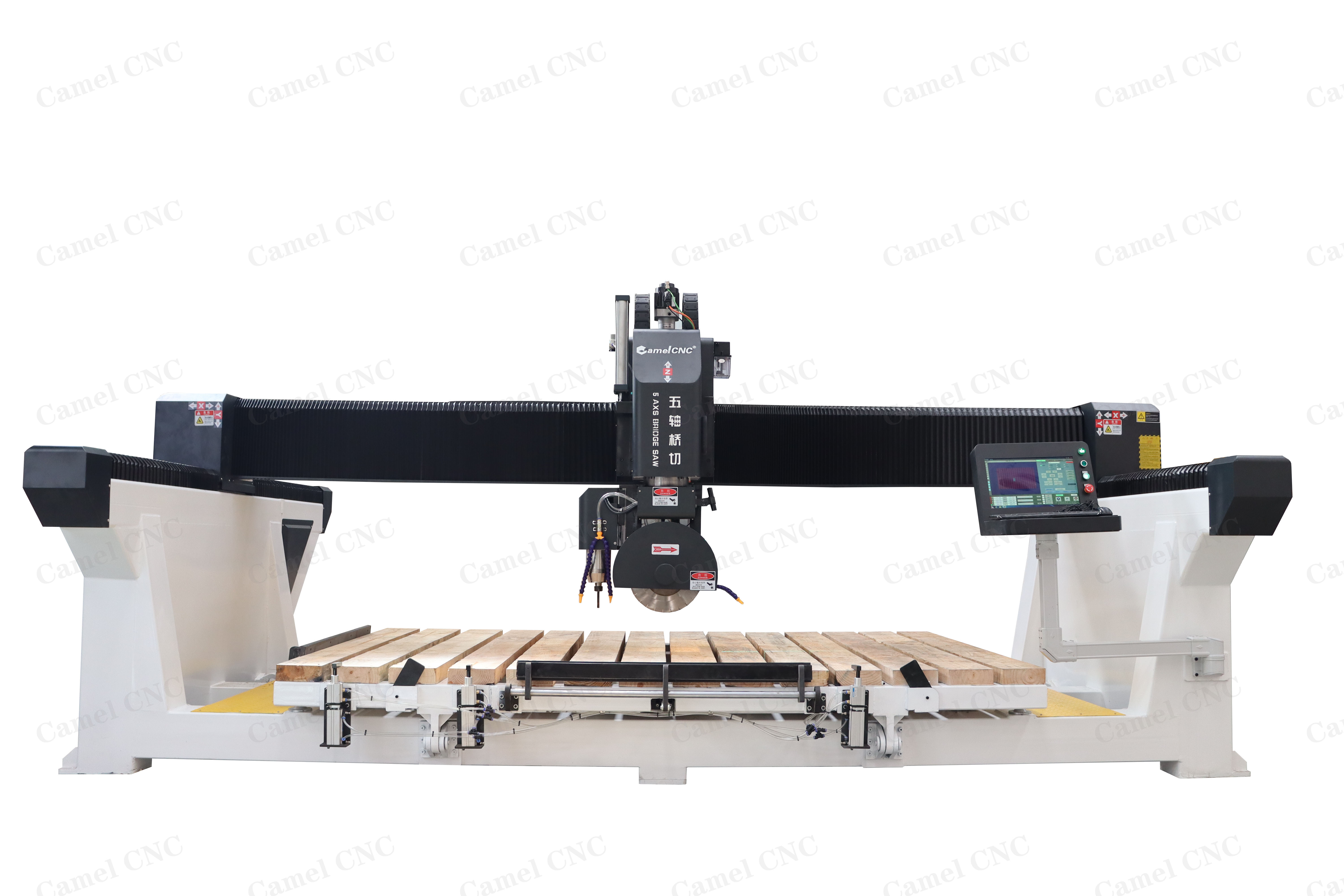

CA-3220 5 Axis Stone Bridge Saw Cutting Machine
Brief Introduction:
The cutting system comes with a library, square, circle, ellipse, rhombus, polygon, fan-shaped, cross-cutting, vertical-cutting, and can be directly imported by dxf.
The worktable supports 0-80 degree flip, easy to load.
Multiple functions, multiple functions in one machine, small footprint, simple operation, precise processing, fast and convenient conversion of different functions, CNC control, special-shaped cutting, circular cutting, full-page cutting, chamfering (slate, quartz, marble, granite), one machine can meet customer needs!
Application:
The machine is used for cutting stone: Marble , granite, quartz, etc. Also professional for making kitchen countertop.
Used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
Parameters:
Working area | 3200x2000mm |
Voltage | 380V Three phase 50/60hz |
Spindle motor power | 11kw |
Rotate of working platform | 0-80 degree |
Motor | 1500w servo and drive |
Reducer | Japan Shimpo high precision reducer |
Blade diameter | 350-450mm |
Lubrication system | Auto Lubrication |
Infrared ray | Equipped with laser infrared probe, showing cutting path |
