Parameters:
NO. Description | Parameter | |
1 | max process length | 250mm |
2 | process diameter | 3-60mm |
3 | machine size | 1800*1000*1100mm |
4 | transmission way | Ball screw with imported bearings |
5. | orbit | Square guide orbit |
6 | system | LCD Control panel |
7 | Surroundings for software | windows98/2000/XP/WIN7/WIN8 |
8 | Power | 3KW |
9 | Working voltage | AC220V 50/60Hz |
10 | Drawing software | AUTOCAD |
11 | Drawing format | *.PNG |
12 | Driving system | 86 large Stepper motor and driver |
13 | cutter | Super hard alloy wood lathe cutter |
Advantage:
Special used for small wood craft making with high efficiency
Adopting advanced LCD system with USB port which is easy for operating even without a computer
Adopt high ball screw and square guide rail with high precision and longevity.
Compatible with several CAD/CAM design software,support G code etc
Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
One time tool setting to finish the whole work piece.

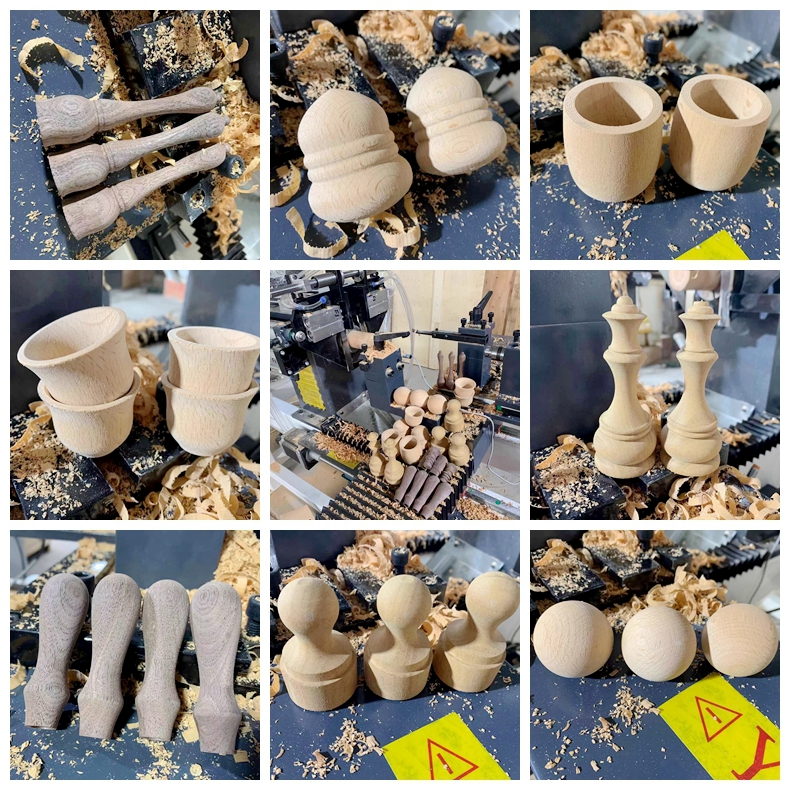

Application
Bead, barrel, all kinds of Buddha head pagoda, gourd pendant, hoist pieces, rhinoceros-horn, cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, wooden handle etc
