• Model: CA-1530,CA-2030,CA-3030
  • FOB Price : $5000-$8000/SET
  • Min Order Quantity: 1 SET
  • Supply Ability: 300 SETS/Month
  • Payment Terms: L/C(Letter of Credit),T/T(Telegraphic Transfer),Western Union,Alibaba
  • Product Detail

    Product Tags

    CA-1530 CNC Wood Lathe



    1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
    2. Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
    3. Adopting advanced LCD system with USB port which is easy for operating even without a computer.
    4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
    5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
    6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel.
    7. One time tool setting to finish the whole work piece.
    8. Turning, broaching and engraving can be done with one machine by high speed.

    Technical Data:

    Item Specification
    Max processing length 1500mm(can custom 2000/2500/3000mm)
    Max turning diameter 300mm
    Air pressure 0.6-0.8Mpa
    Power supply AC 380V 3 phase 50HZ/60HZ(can custom 220V)
    Max feed rate 200cm/min
    min setting unit 0.01cm
    Transmission type gear for Y axis
    Guider Taiwan Hiwin orbit
    Main shaft rotating speed 0-3000r/min
    Motor power 4kw
    Cutter material Super hard alloy
    Control System LCD control system
    Motor Stepper motor
    Driver  YAKO driver
    Drawing Software AutoCAD
    Hand controller recognize file *.dxf

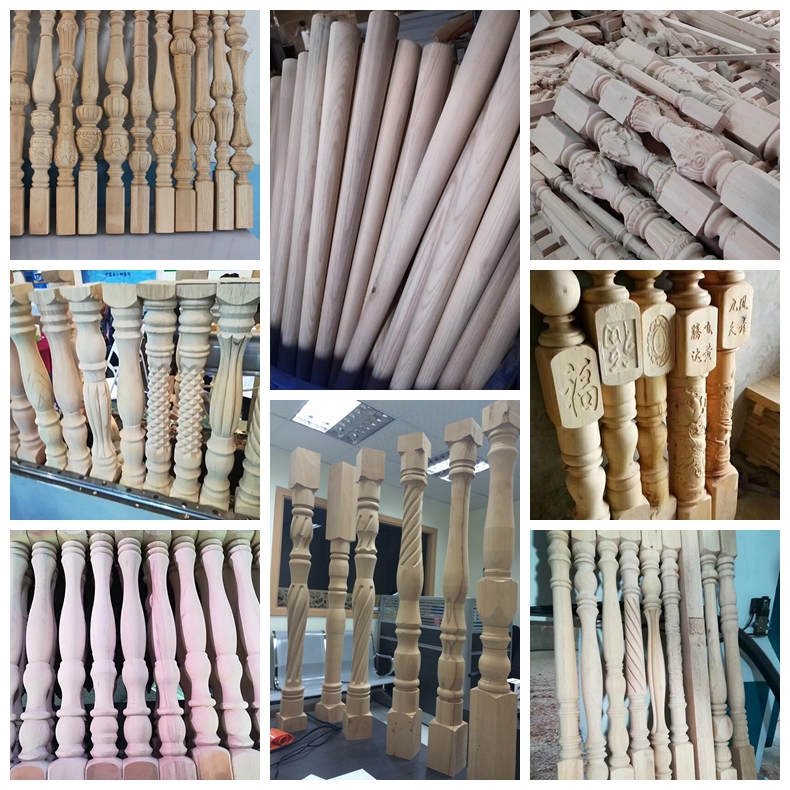

    lathe samples
