CA-1224 Double Table 4 Axis Spindle Rotate CNC Router For Chair Making
Specifications:
♥ Double working bed with 1000mm *1200mm*600mm
♥ High speed helical Rack Gear transmission
♥ High Precision Imported Taiwan Square Guid Rail
♥ Vacuum&T-slot combined Working table with vacuum pump
♥ Taiwan SYNTEC Control system
♥ Japan YASKAWA servo motor and driver
♥ 9kw air cooling spindle with rotate 180 degree
Features:
1.Adopts SYNTEC numerical control system with LCD screen, the machine with high speed and high machining accuracy.
2.Taiwan linear rails ensures accuracy and strength of the machine.
3.Z-axis high size makes the machine suitable for processing large-scale sheets.

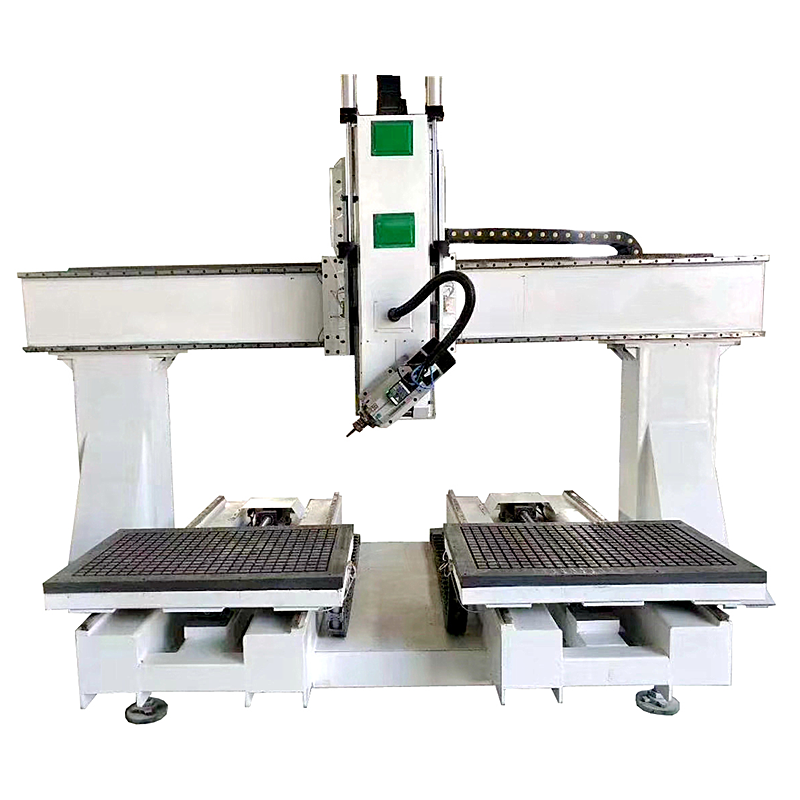

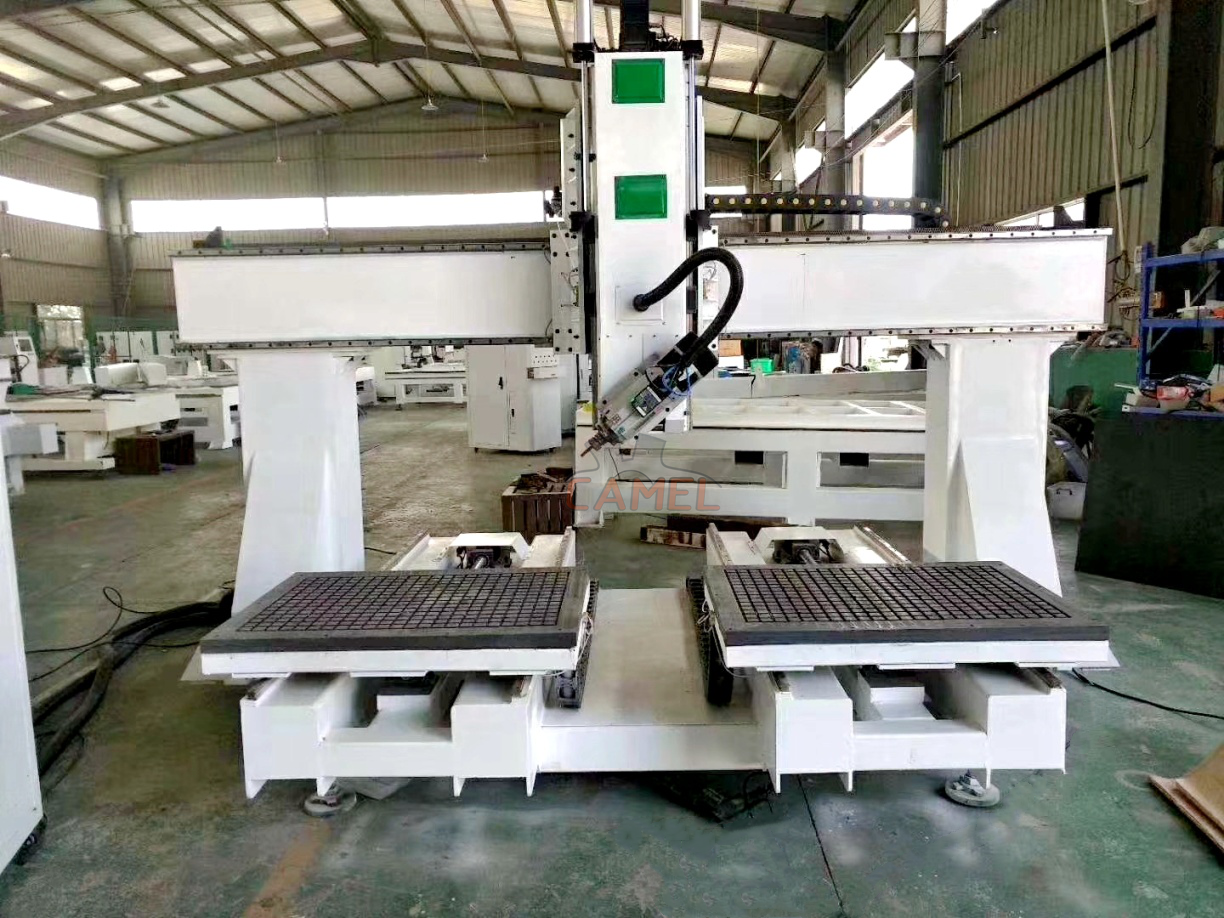

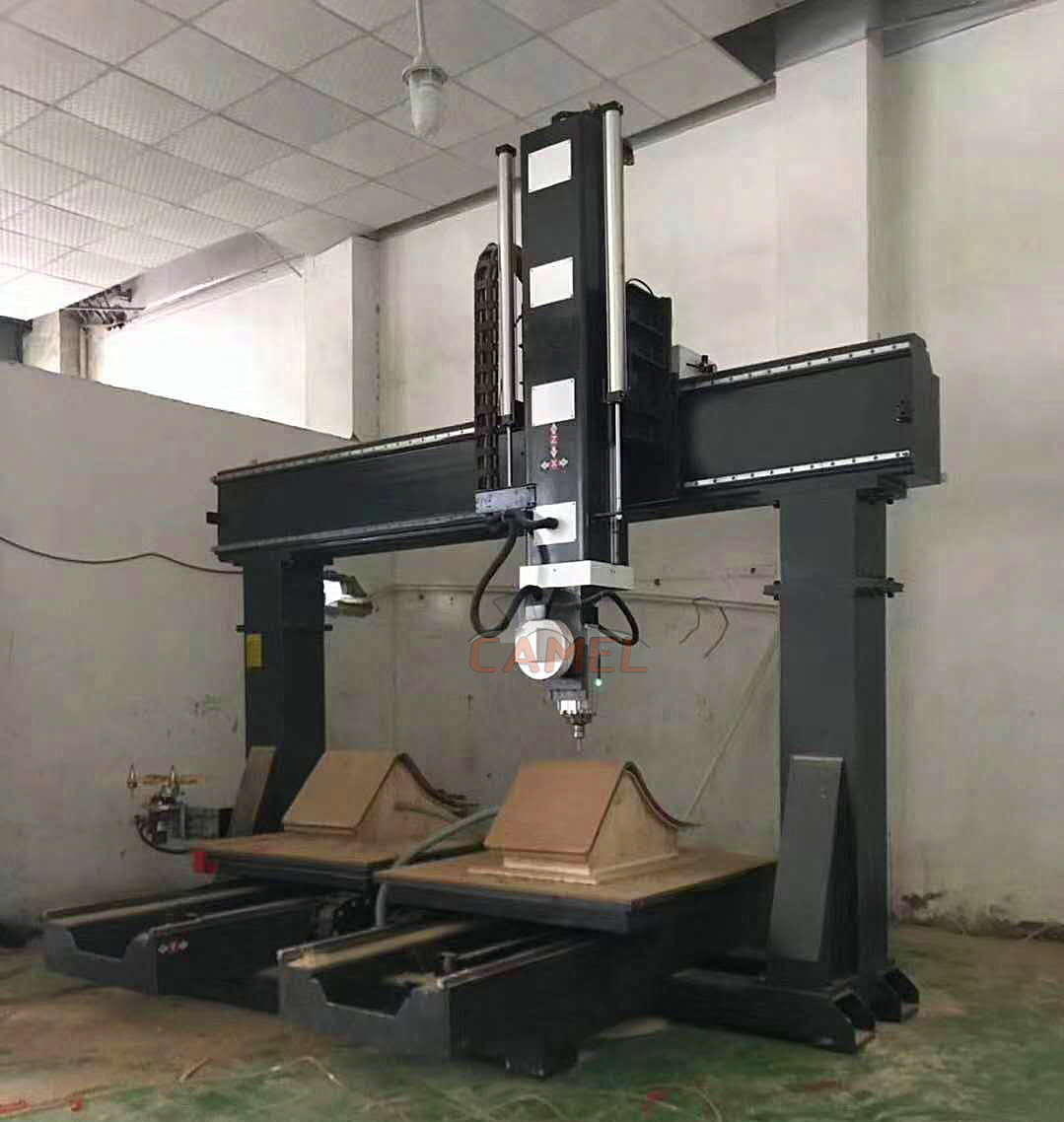

Machine Photos:
Parameters:
|
NO. |
Description | parameter |
|
1 |
X Y Z working area | Double table with 1200*1000*600mm |
|
2 |
Positioning accuracy | ±0.03/300mm |
|
3 |
Reposition positioning accuracy | ±0.03/300mm |
|
4 |
Frame | Heavy steel |
|
5 |
Drive system X,Y,Z axis | Helical Rack gear |
|
6 |
Max power consumption | 15.0KW |
|
7 |
Max velocity | 25000mm/min |
|
8 |
Max working speed | 15000mm/min |
|
9 |
Spindle power | HQD 9kw Air cooling spindle rotate 180 degree |
|
10 |
Drive motor | Japan YASKAWA 1500W servo motor and driver |
|
12 |
Working voltage | AC380V,3 phase |
|
13 |
Command language | G code |
|
14 |
Interface | USB |
|
15 |
Operating system | Taiwan SYNTEC |
|
18 |
X-Y resolution | 0.03/300mm |
|
19 |
Running Temperature: |
0 -45 centigrade |
Application:
1.Mold industry. Can engrave all kinds of large non-metallic molds, especially for automotive foam molds, ship wood molds, aviation wood molds, train wood molds and so on. And the precision moulding of molds such as casting wood molds, lost foam casting foams, and food molds.
2. Furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
3. Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.

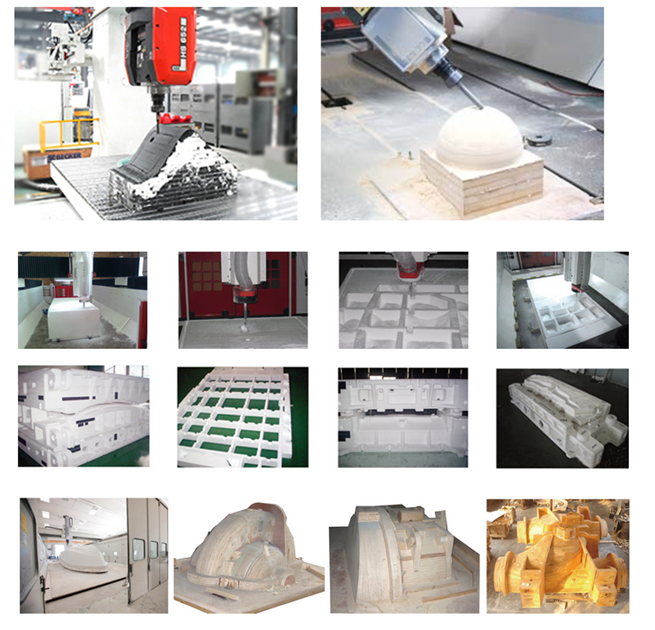

Samples:
