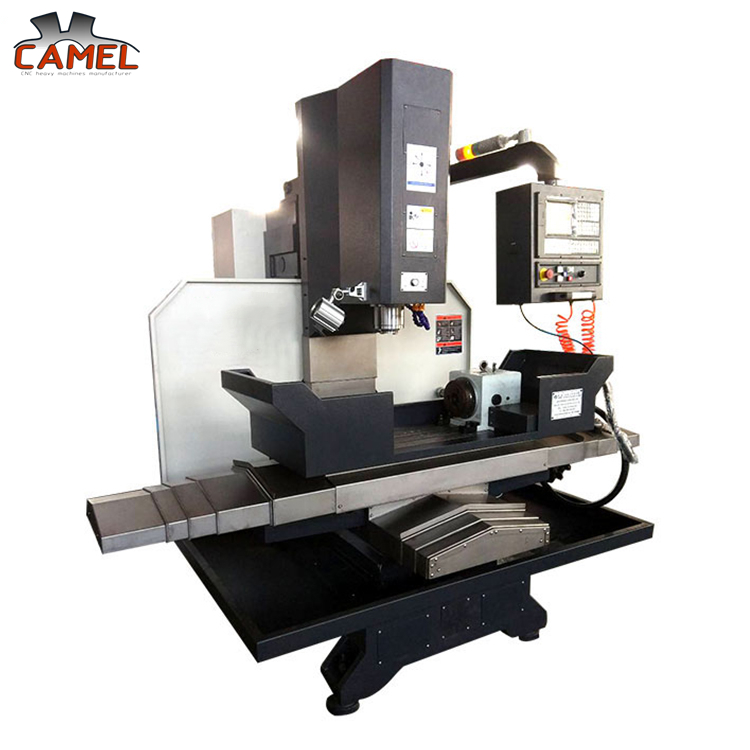

CA-7130 Metal CNC Milling Machine
Specifications:
- Working schedule:600mm*360mm*450mm
- Working table size:800mm*300mm; Max loading 350KGS
- Heavy machine duty
- KND1000 Control system
- Beijing KND servo system
- T-slot moving high precision working table
- BT40 spindle
Description:
The machine tool is a CNC milling machine with strong bearing capacity. The three-direction guide rails are hardened hard rails. The guide rails have a wide width and a large span. The structure and dimensions are compact and reasonable. The main shaft is driven by a frequency conversion motor through a synchronous belt. Milling, drilling, reaming, reaming and other functions, can realize the processing of complex, high-precision parts such as discs, plates, shells, molds, etc. Bevels, grooves, holes and other processes are ideal processing equipment for industries such as machinery, electronics, instruments, meters, molds, and automobiles.
Technical Parameter:
Item | Name | Unit | Parameter |
schedule | X Axis | mm | 600 |
Y Axis | mm | 360 | |
Z Axis | mm | 450 | |
Working table | Length | mm | 800 |
Width | mm | 300 | |
Load weight | kg | 350 | |
T-slot | Specification | mm | 3-16 |
Center distance | mm | 80 | |
Spindle | Taper | BT40 | |
Distance from spindle center to rail surface | mm | 340 | |
Speed | Rmp | 8000 | |
Max power | kw | 5.5 | |
Drive system | Timing belt | ||
Accuracy | Positioning accuracy | mm | ±0.01 |
Repeat accuracy | mm | ±0.008 | |
Feeding rate | X / Y / Z max traverse speed | m/min | 12/12/10 |
General parameters | Machine weight | kg | 2200 |
Dimensions | mm | 2200x1800x2250 | |
Voltage | KVA | 380V | |
System | KND1000 |

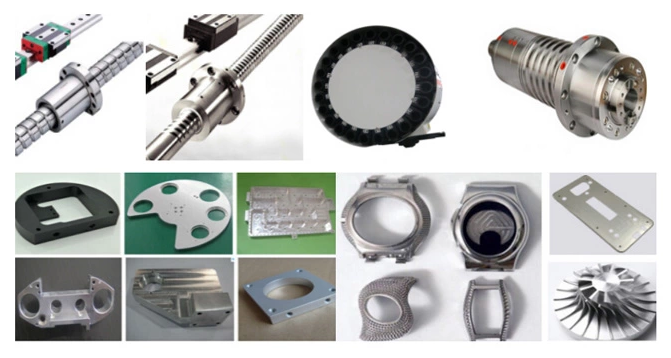

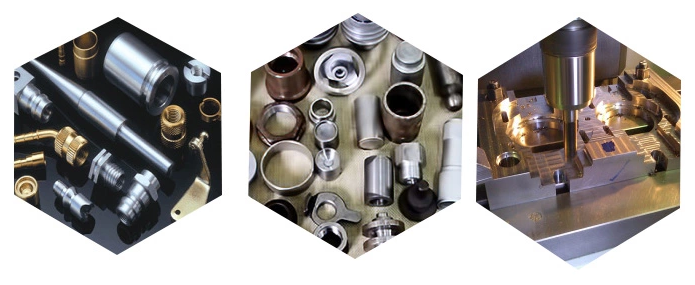

Samples:
