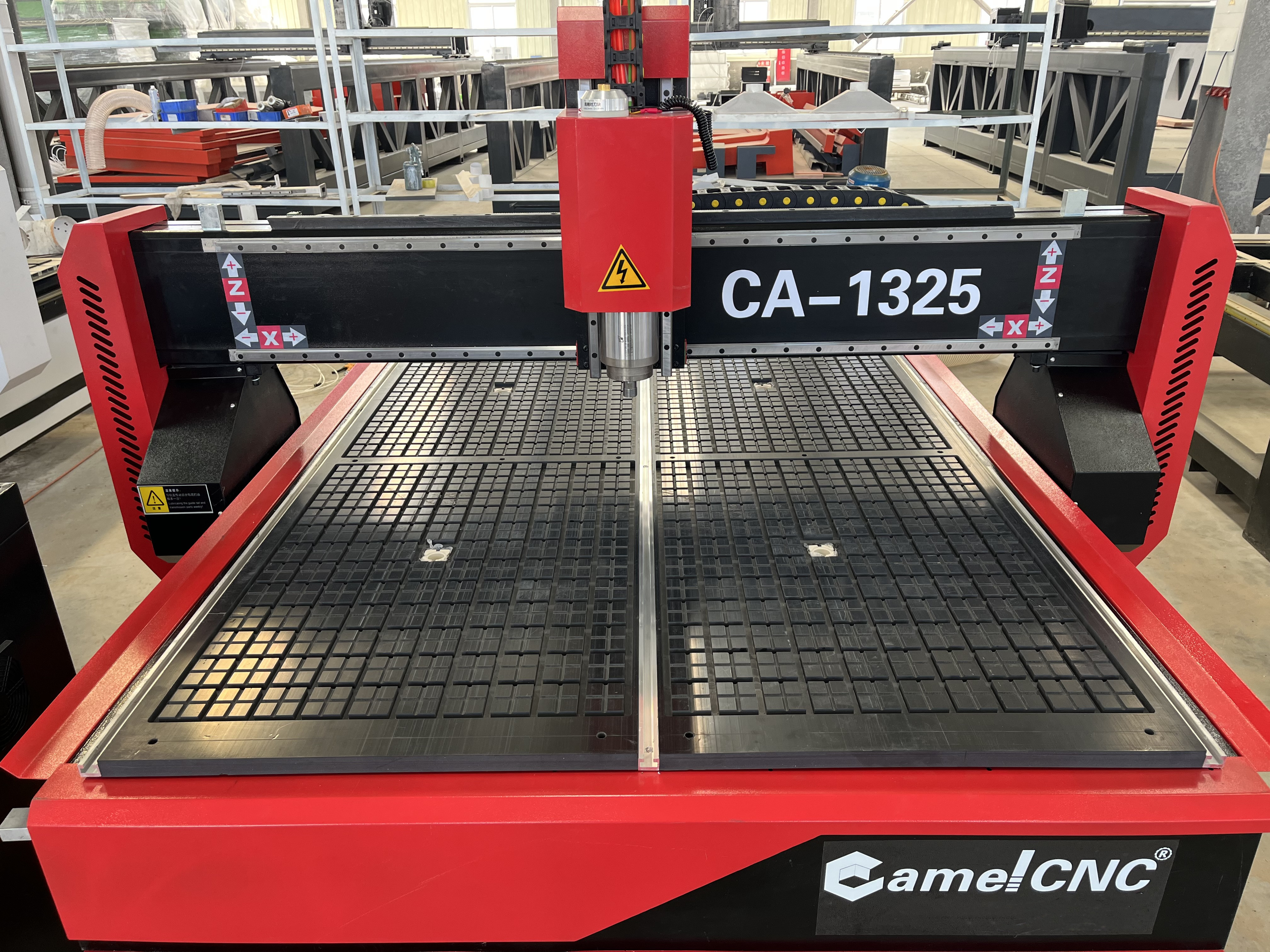

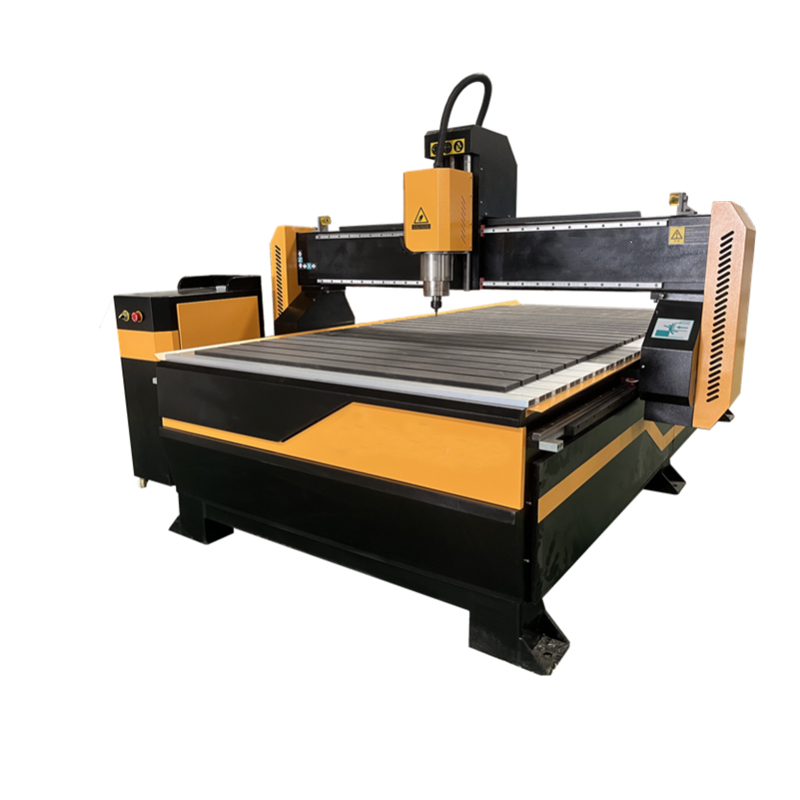

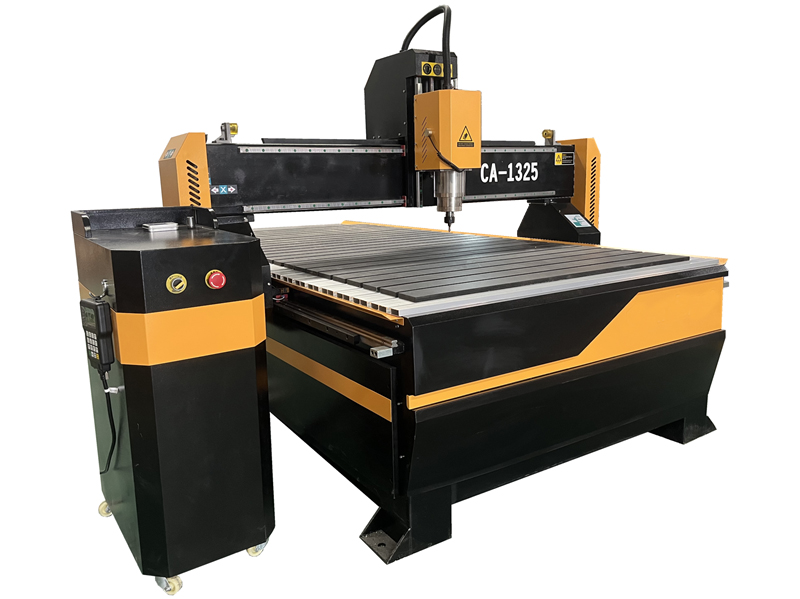

CA-1325 CNC Router Machine With Vacuum Table
Features
1.Double motors and drivers of Y axis ensure steady movement.
2.Rack gear transmission ensures fast speed and high accuracy.
3.Imported square rail ensures high accuracy and heavy workload.
4.Intelligent protection of working table can avoid damage resulted from the wrong operation.
5.Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
Technical parameter:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1700×3040mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
5 | Lathe Structure | Welded Structure |
6 | X, Y Structure | Rack gear Transmission, Shaft Linear Bearings |
7 | Z Structure | Ball Screw, Shaft Linear Bearings |
8 | Max. Consume power | 5Kw |
9 | Max. Speed | 0-32000mm/min |
10 | Max. Working Speed | 0-20000mm/min |
11 | Spindle Power Motor | 3.2kw water-coolant Spindle
|
12 | Spindle Speed | 0-24000RPM |
13 | Drive Mode | 450B stepper motor and drive |
14 | Working Voltage | AC220V/380V, 50/60Hz |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | NC studio control system |
17 | Interface | USB |
18 | Flash Memory | 512M |
19 | Collet | ER20 |
20 | X,Y Working Delicacy | <0> |
21 | Software | Ucancam, Artcam,Type3，JDpaint |
22 | Running Circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% |
All parameters above subject to change without prior notice | ||
Application:
This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Samples:
