• Model: CA-2030/CA-2060
  • FOB Price : $20000-$30000
  • Min Order Quantity: 1 Set
  • Supply Ability: 200 Sets/Month
  • Payment Terms: L/C(Letter of Credit),T/T(Telegraphic Transfer),Western Union,Alibaba
  • Product Detail

    Product Tags

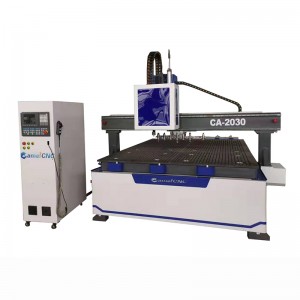

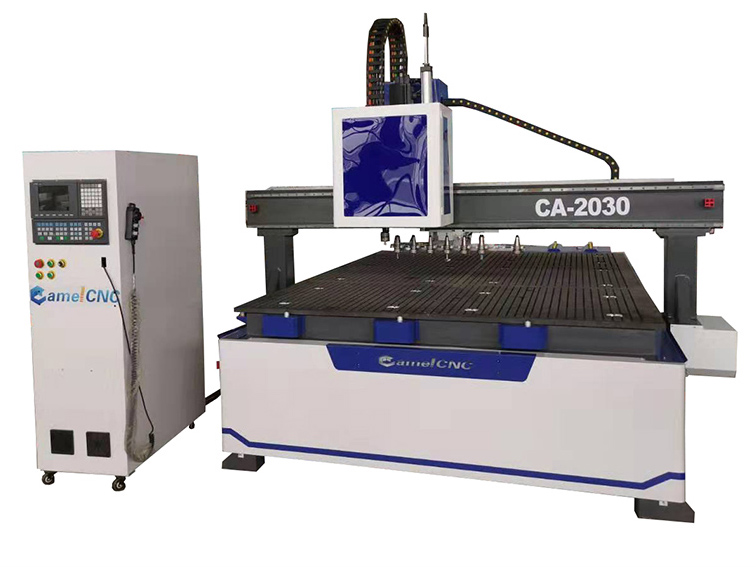

    CA-2030 ATC&Oscillating knife combined CNC Router

    01

    Specification:

    1. Working area: 2000*3000*200mm.
    2. Super quality 9KW air cooling Auto-tool changer spindle.
    3. HIWIN 25mm guide rail keep high working precision
    4. Delta 1000w servo motor with big power motor and driver ensures machine to run with fast speed and low noise.
    5. With 8 pieces auto-tool changer and Auto tool sensor.
    6. With Bakelite vacuum table and 7.5KW vacuum pump, and 3.0kw dust collector.
    7. Syntec 6MB controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
    8. High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
    9. Oscillating knife cutting machine CNC leather cardboard cutter router machine
    10. CCD Camera could find the edge automatically while cutting.

    Application:

    1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
    2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
    3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
    4. Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, agamid fiber, ceramic fiber, soft glass, PVC, leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material.
    5. Other industry: image engraving, embossing, craft and gift industry.

    Technical Data:

    Name Specification
    X,Y,Z Working Area 2000X3000X200mm
    Table Size 2200X3540mm
    X,Y,Z,Traveling Positioning Accuracy ±0.03/300mm
    X,Y,Z,Repositioning Positioning Accuracy ±0.05mm
    Lathe Bed Strong lathe bed(T-mode stand optional)
    Gantry Steel structure gantry design
    Guide Rail HIIWIN 25mmSquare Rail with X,Y,Z axis
    XY Z Transmission Gear rack with X and Y axisImported Ball Screw with Z axis
    Spindle Motor 9kw HQD air spindle special for tool changer

    Max. Speed

    0-45000mm/min

    Max. Working Speed

    0-25000mm/min

    Spindle Speed

    0-24000RPM

    Drive Mode

    Delta system

    Working Voltage

    AC220V/380V, 50/60Hz

    Command

    G Code, *uoo, *mmg, *plt

    Inverter 11kw Delta inverter
    Control System Syntec 6MB control system And Leetro Control system Markcut V8 software
    Typeset Software ARTCAM(can support any G-code software)
    Motor Delta 1000W Servo Motor
    Tools cooling OIL sprayer pump
    Lathe Table Vacuum table with 8 sections +6 vacuum cups
    Vacuum Pump 7.5KW VACUUM Pump
    Tool Magazine 8pcs ISO30 tool holder
    Dust Collector 3.0KW
    Electricity cabinet Independent Cabinet
    Tool sensor TOOL SENSOR

    Collet

    ER32

    X,Y Working Delicacy

    <0.01mm

    Software

     Ucancam,  Artcam

    Running circumstance

    Temperature: 0℃~45℃, Relative humidity: 30%~75%

    919
