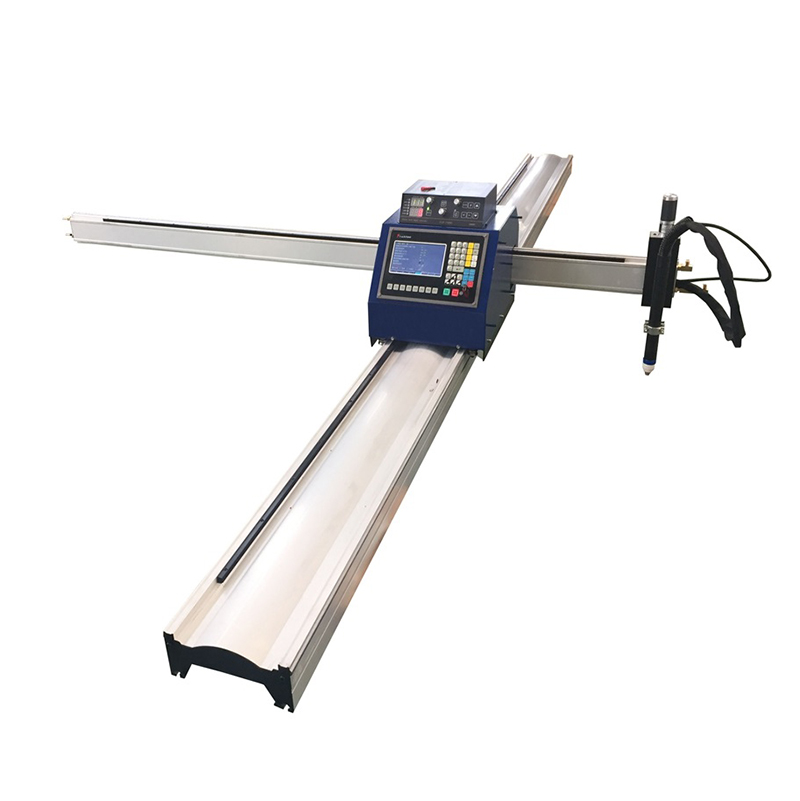

CA-1530 Portable Plasma Cutting Machine
Description:
1. Imported precision square linear guides rails, horizontal transmission by precision aluminum extrusions and components, transmission stability, high accuracy can cut any complex plane figures with oxy-fuel flame cutting and plasma cutting machine, move freely.
2. Widely used in automotive, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light machinery and other industries, especially for single-piece contoured surface and mass production.
Features:
1. Tailored track acquires high-intensity, high-speed and high-precision features.
2. Human computer interface design makes the machine easy to learn and operate, with multi- functions.
3. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel, Aluminum etc
4. Enable convert of CAD into the program file which can be transmitted to main machine by USB to cut plate into any shape.
5. With two cutting modes: Plasma Cutting & Flame Cutting
6. Can automatically memorize and restore when power is off.
7. Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile, protect the torch form damage and prolong life span of the nozzles.
8. With status indication device.
9. With positioning functions of protection cover, proximity switch and dual-speed
Parameters: | CA-1530 | CA-1560 |
Working material |
Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium Plates |
|
Working Area | 1500x3000mm | 1500x6000mm |
Cutting Speed | 0-6000mm/min | 0-6000mm/min |
Moving Speed | 0-12000mm/min | 0-12000mm/min |
Power | 8.5KW-10.5KW | 8.5KW-10.5KW |
Input Voltage | Single/three phase 220/380V | Single/three phase 220/380V |
Power Frequency | 50/60Hz | 50/60Hz |
Files Transfer | USB Interface | USB Interface |
Arc | Untouched ArcStriking | Untouched ArcStriking |
Gas pressure(Mpa) |
Max 0.1 |
|
Type of gas |
C3H8 C2H2 |
|
Oxygen pressure(Mpa) |
Max 0.7 |
|
Cutting thickness(Flame)(mm) |
6-200mm (O2/C3H8 or C2H2) |
|
Processing thickness(mm) |
0.5-25mm (plasma according to different plasma source) |
|
Cutting Thickness |
(63A)0.3-8mm |
|
Brand:LGK/US Hypertherm (optional) |
(100A)0.5-12mm |
|
(120A)0.5-16mm |
||
(160A)0.5-20mm |
||
(200A)0.5-25mm |
