• Model: CA-1325/CA-1530/CA-2040
  • FOB Price : $4000-$8000
  • Min Order Quantity: 1 Set
  • Supply Ability: 300 Sets/Month
  • Payment Terms: L/C(Letter of Credit),T/T(Telegraphic Transfer),Western Union,Alibaba
  • Product Detail

    Product Tags

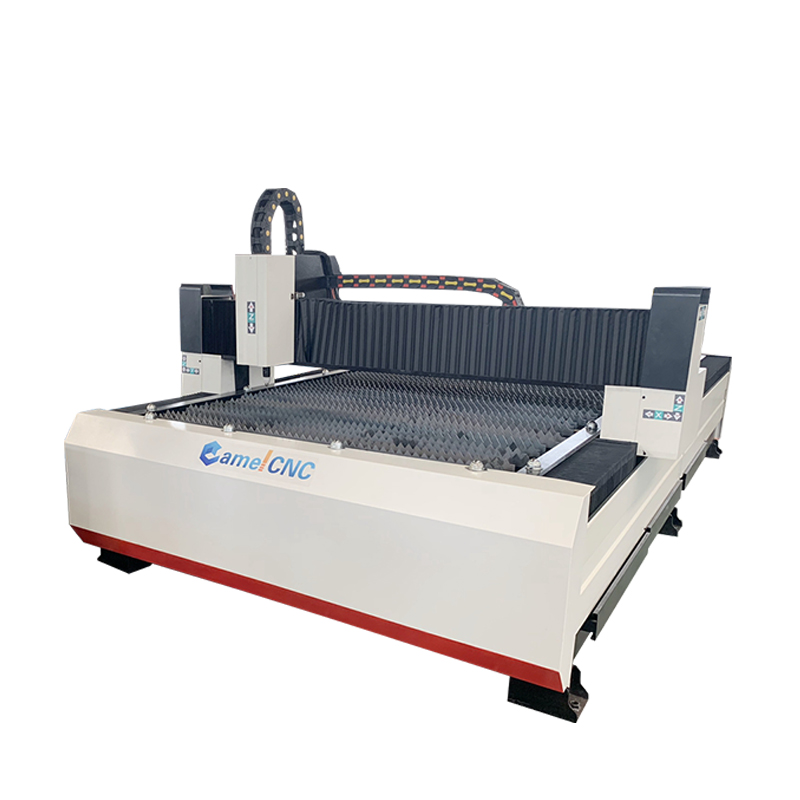

    CA-1530 Industry Plasma Cutting Machine

    06



    Specification:

    1.Welded lathe bed of thick-wall profiled steel, more solid and stable.

    2.Reasonable lathe table design, thick steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.

    3.The level difference of whole double-deck platform remains in 0-1.5mm

    4.Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

    5.High accuracy and speed rack transmission.

    6.Lower noise, stable and accurate coordinates movement.

    7.Starf control system with large LCD Screen and Australia design Software FASTCAM with auto material saving function.

    8.power supply together with high sensitive Touch Height Controller. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.

    9.Best choice for all kind of different thickness material and heterotypic sheet cutting.

    Parameters:

      CA-1325 CA-1530 CA-2040
    Cutting material Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium Plates
    Working Area 1300x2500mm 1500x3000mm 2000*4000mm
    Cutting mode

    Plasma cutting+Flame cutting  (Drilling head optional)

    Cutting Speed

    0-6000mm/min

    Cutting Thickness

    (63A)0.3-8mm

    Brand:Huayuan (Hypertherm
    optional)

    (100A)0.5-12mm

    (120A)0.5-16mm

    (160A)0.5-20mm

    (200A)0.5-25mm

    (400A)0.5-40mm

    (600A)0.5-50mm

    Control system

    Starfire Control System  (Fangling optional)

    Motor

    Stepper motor  (Servo motor optional)

    Moving Speed

    0-12000mm/min

    Power

    8.5KW-10.5KW

    Input Voltage

     220V single phase /380V three phase

    Power Frequency

    50/60Hz

    Software

    Fastcam Nesting Software

    Files Transfer

    USB Interface

    Arc

    Untouched Arc Striking

    Torch Height Controller

    YES

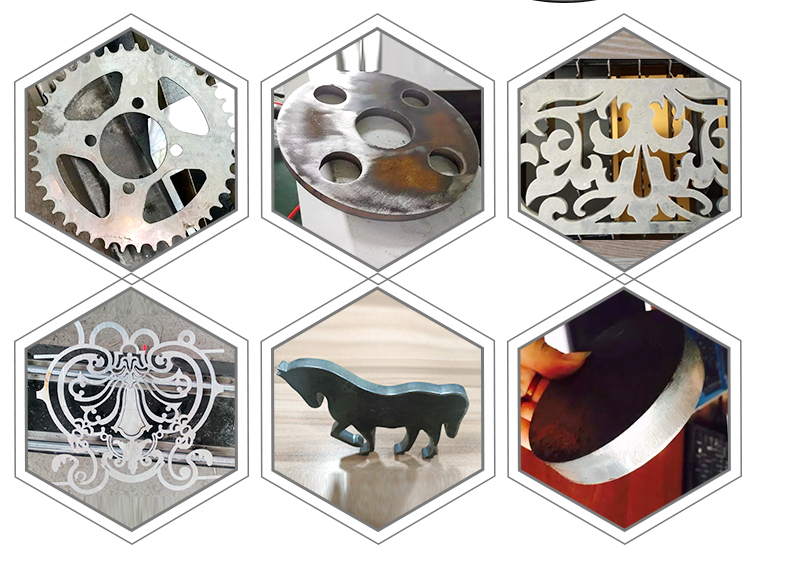

    Sample

    QQ图片20180903154723
